僑誼 HANMA

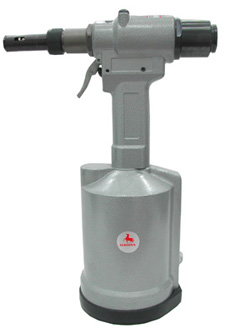

T820E68 氣動油壓哈克釘槍

產品規格:

Lockbolt Size :

4.8 mm (3/16”), 6.4 mm (1/4”)

Traction Power :

2500 kg (5500 lbs)

Stroke :

23 mm (7/8”)

Jaw :

3 pcs

Height :

342 mm (13-1/2”)

Weight :

3.5 kg (6.5 lbs)

Air Inlet :

1/4” NPT

Hose Size :

3/8”

產品特性:

1.	Using for HUCK C6L Fasteners & AVDEL Avdelok.
2.	Option application for HUCK Magna-Grip & AVDEL Maxlok.
3.	3 piece of ultra jaw for durability.
4.	250∘Swivel air inlet for great maneuverability of the tool.
5.	Rubber cushion for impact resistance and well protection.

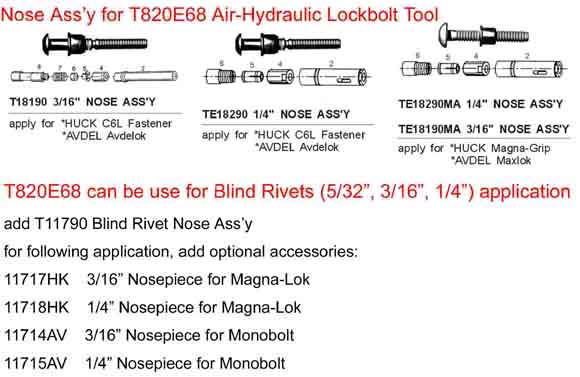

Parts list for T820E68 Air-Hydraulic Lockbolt Tool
