紅馬司特 拉釘/拉帽氣動工具 > 拉釘機 > 直型氣動油壓拉釘機 > MV5100

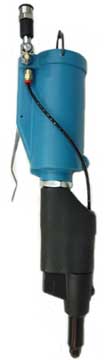

MV5100 直型氣動油壓拉釘機(吸釘式)
  產品規格:
*
Rivet Size:

3.2 mm (1/8”), 4.0 mm (5/32”), 4.8 mm (3/16”)
*
Traction Power:

900 kg (2000 lbs)
*
Stroke:

16 mm (5/8”)
*
Jaw : 3 pcs
*
Weight :

1.5 kg (3.3 lbs)
*
Air Inlet : 1/4” NPT
*
Hose Size : 3/8”

  產品特性:
1. Collect mandrel through visible tube, for continuous operate.
2. Fully adjustable tube vacuum system.
3. 3 piece of ultra jaw for durability.
4.

Ideal tool for assembly line riveting.
5. For working at narrow spaces and hard-to-reach places.



Parts list for MV5100 Air-Hydraulic Riveter (Straight type)
