紅馬司特 拉釘/拉帽氣動工具 > 拉釘機 > 氣動油壓拉釘機 > HA566

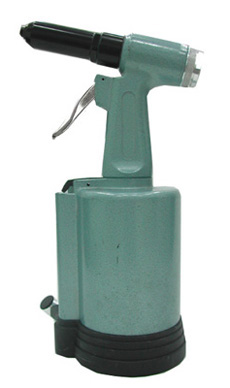

HA566 氣動油壓拉釘機
  產品規格:
*
Rivet Size:

2.4 mm (3/32”), 3.2 mm (1/8”), 4.0 mm (5/32”), 4.8 mm (3/16”), 6.3 mm (1/4”)

*
Traction Power:

1750 kg (3800 lbs)

*
Stroke:

18 mm (11/16”)

*
Jaw : 2 pcs
*
Weight :

2.0 kg (4.3 lbs)

*
Air Inlet : 1/4” NPT
*
Hose Size : 3/8”

  產品特性:
1. Light weight.
2. 2 piece of jaw.
3. Good balance for minimum operator fatigue.
4.

Trigger is comfortable to operate at any direction.

5. Top screw plug for easy re-fill hydraulic oil.
6. 250∘Swivel air inlet for great maneuverability of the tool.



Parts list for HA566 Air-Hydraulic Riveter
