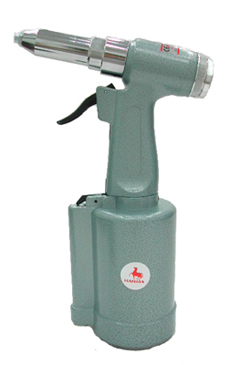

HH6A 氣動油壓拉釘機
  產品規格:
*
Rivet Size:

2.4 mm (3/32”), 3.2 mm (1/8”), 4.0 mm (5/32”), 4.8 mm (3/16”), (6.3 mm only for Aluminum rivets)

*
Traction Power:

1140 kg (2500 lbs)

*
Stroke:

15 mm (5/8”)

*
Jaw : 2 pcs
*
Weight :

1.6 kg (3.6 lbs)

*
Air Inlet : 1/4” NPT
*
Hose Size : 3/8”

  產品特性:
1. Light weight.
2. 2 piece of jaw.
3. Good balance for minimum operator fatigue.
4.

Trigger is comfortable to operate at any direction.

5. Top screw plug for easy re-fill hydraulic oil.
6. 250∘Swivel air inlet for great maneuverability of the tool.



Parts list for HH6A Air-Hydraulic Riveter
