僑誼 HANMA

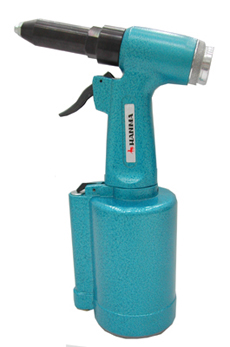

HH5 氣動油壓拉釘機

產品規格:

Rivet Size:

2.4 mm (3/32”), 3.2 mm (1/8”), 4.0 mm (5/32”), 4.8 mm (3/16”)

Traction Power:

900 kg (1980 lbs)

Stroke:

15 mm (5/8”)

Jaw :

2 pcs

Weight :

1.5 kg (3.3 lbs)

Air Inlet :

1/4” NPT

Hose Size :

3/8”

產品特性:

1.	Light weight.
2.	2 piece of jaw.
3.	Good balance for minimum operator fatigue.
4.	Trigger is comfortable to operate at any direction.
5.	Top screw plug for easy re-fill hydraulic oil.

Parts list for HH5 Air-Hydraulic Riveter
