僑誼 HANMA

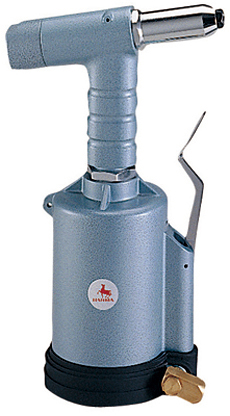

T115AV 工業級氣動油壓拉釘機

產品規格:

Rivet Size:

4.0 mm (5/32”), 4.8 mm (3/16”), 6.3 mm (1/4”), 7 mm (9/32”)

Traction Power:

1500 kg (3300 lbs)

Stroke:

18 mm (11/16”)

Jaw :

3 pcs

Weight :

2.4 kg (5.3 lbs)

Air Inlet :

1/4” NPT

Hose Size :

3/8”

產品特性:

1.	Heavy duty jaw for Avdel Monobolt, Huck Magna-Lok
2.	Stronger traction power, quick working activity.
3.	Forging hydraulic section & hydraulic plunger with double O-ring to avoid oil leakage.
4.	3 piece of ultra jaw for durability.
5.	250∘Swivel air inlet for great maneuverability of the tool.
6.	Rubber cushion for impact resistance and well protection.

Parts list for T115AV Heavy Duty Air-Hydraulic Riveter
