紅馬司特 拉釘/拉帽氣動工具 > 拉釘機 > 工業級氣動油壓拉釘機 > MA5000B

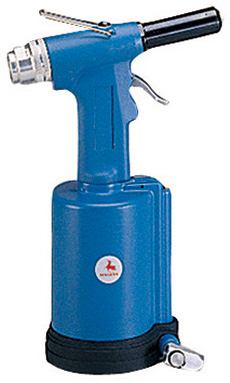

MA5000B 工業級氣動油壓拉釘機
  產品規格:
*
Rivet Size:

3.2 mm (1/8”), 4.0 mm (5/32”), 4.8 mm (3/16”), 6.3 mm (1/4”)

*
Traction Power:

1700 kg (3800 lbs)

*
Stroke:

21 mm (7/8”)

*
Jaw : 2 pcs
*
Weight :

2.3 kg (5 lbs)

*
Air Inlet : 1/4” NPT
*
Hose Size : 3/8”

  產品特性:
1. Full range air riveter
2. Stronger traction power, quick working activity.
3. Forging hydraulic section & hydraulic plunger with double O-ring to avoid oil leakage.
4.

2 piece of ultra jaw for durability.

5. Long stroke.
6. 250∘Swivel air inlet for great maneuverability of the tool.
7. Rubber cushion for impact resistance and well protection.



Parts list for MA5000B Heavy Duty Air-Hydraulic Riveter
