紅馬司特 拉釘/拉帽氣動工具 > 拉釘機 > 工業級氣動油壓拉釘機 > MA5000AV

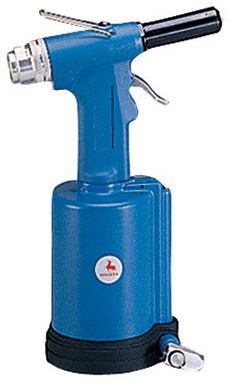

MA5000AV工業級氣動油壓拉釘機
  產品規格:
*
Rivet Size:

3.2 mm (1/8”), 4.0 mm (5/32”), 4.8 mm (3/16”), 6.3 mm (1/4”)
*
Traction Power:

1700 kg (3800 lbs)
*
Stroke:

21 mm (7/8”)
*
Jaw : 3 pcs
*
Weight :

2.3 kg (5 lbs)
*
Air Inlet : 1/4” NPT
*
Hose Size : 3/8”

  產品特性:
1. Full range air riveter
2. Heavy duty jaw for Avdel Monobolt, Huck Magna-Lok
3. Stronger traction power, quick working activity.
4.

Forging hydraulic section & hydraulic plunger with double O-ring to avoid oil leakage.
5. 3 piece of ultra jaw for durability.
6. 250∘Swivel air inlet for great maneuverability of the tool.
7. Rubber cushion for impact resistance and well protection.



Parts list for MA5000AV Heavy Duty Air-Hydraulic Riveter
