僑誼 HANMA

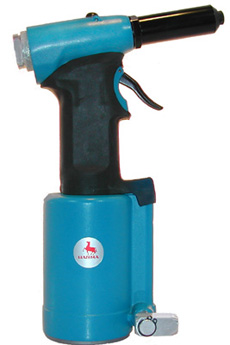

MA5400 工業級氣動油壓拉釘機

產品規格:

Rivet Size:

3.2 mm (1/8”), 4.0 mm (5/32”), 4.8 mm (3/16”), 6.3 mm (1/4”)

Traction Power:

1100 kg (2500 lbs)

Stroke:

16 mm (5/8”)

Jaw :

3 pcs

Weight :

1.8 kg (4 lbs)

Air Inlet :

1/4” NPT

Hose Size :

3/8”

產品特性:

1.	Full range air riveter
2.	Stronger traction power, quick working activity.
3.	Forging hydraulic section & hydraulic plunger with double O-ring to avoid oil leakage.
4.	3 piece of ultra jaw for durability.
5.	Long stroke.
6.	250∘Swivel air inlet for great maneuverability of the tool.
7.	Rubber cushion for impact resistance and well protection.

Parts list for MA5400 Heavy Duty Air-Hydraulic Riveter
