紅馬司特 拉釘/拉帽氣動工具 > 拉釘機 > 工業級氣動油壓拉釘機 (吸釘式) > MV480P

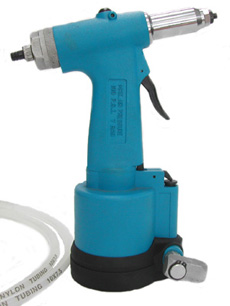

MV480P 工業級氣動油壓拉釘機(吸釘式)
  產品規格:
*
Rivet Size:

3.2 mm (1/8”), 4.0 mm (5/32”)

*
Traction Power:

600 kg (1300 lbs)

*
Stroke:

16 mm (5/8”)

*
Jaw : 3 pcs
*
Weight :

 1.1 kg (2.4 lbs)

*
Air Inlet : 1/4” NPT
*
Hose Size : 3/8”

  產品特性:
1. Collect mandrel through visible tube, for continuous operate.
2. Integrated vacuum mandrel collection system.
3. Adjustable vacuum regulator for the best efficiency in setting different size of blind rivets.
4. 3 piece of ultra jaw for durability.
5.

Long Stroke.

6. 250∘Swivel air inlet for great maneuverability of the tool.
7. Rubber cushion for impact resistance and well protection.



Parts list for MV480P Heavy Duty Air-Hydraulic Riveter (Vacuum System)
