僑誼 HANMA

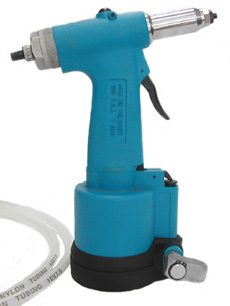

MV4800P 工業級氣動油壓拉釘機(吸釘式)

產品規格:

Rivet Size:

3.2 mm (1/8”), 4.0 mm (5/32”), (4.8 mm only for aluminum rivets)

Traction Power:

800 kg (1760 lbs)

Stroke:

16 mm (5/8”)

Jaw :

3 pcs

Weight :

1.3 kg (2.8 lbs)

Air Inlet :

1/4” NPT

Hose Size :

3/8”

產品特性:

1.	Collect mandrel through visible tube, for continuous operate.
2.	Integrated vacuum mandrel collection system.
3.	Adjustable vacuum regulator for the best efficiency in setting different size of blind rivets.
4.	3 piece of ultra jaw for durability.
5.	Long stroke.
6.	250∘Swivel air inlet for great maneuverability of the tool.
7.	Rubber cushion for impact resistance and well protection.

Parts list for MV4800P Heavy Duty Air-Hydraulic Riveter (Vacuum System)
